🔧 Installing a Custom MCP Server

Once the official server is up and running, it’s time to take control.

In this blog, we’ll show you how to install and configure a custom MCP server. We’ll cover:

Setting up server modifications
Applying custom tool configurations
Ensuring proper tool performance and output

This post is perfect for anyone who wants to go beyond the default setup and tailor the server to specific needs.

🛠 Prerequisites For Installing Custom Mcp Server Which Contains a Simple Tool

Step 1, Create Your Project Folder

Initialize a new project
Open a terminal

Make and open a folder:

mkdir my-mcp-project
cd my-mcp-project

This is your project workspace.

Step 2, Initialize Node & Update package.json

npm init -y

Now open package.json and update it by adding both lines of code so the start script runs your server:

{
  "name": "my-mcp-project",
  "type": "module",          //Line to be added
  "version": "1.0.0",
  "scripts": {
    "start": "node server.js", //Line to be added
  }
}

This ensures npm start runs server.js from the project folder.

Step 3, Install MCP Server Library

Install the official Model Context Protocol server SDK:

npm install @modelcontextprotocol/sdk

Step 4, Create server.js

In the project root, create a file named server.js. Copy and paste this basic MCP server code:

#!/usr/bin/env node

import { McpServer } from "@modelcontextprotocol/sdk/server/mcp.js";
import { StdioServerTransport } from "@modelcontextprotocol/sdk/server/stdio.js";

async function main() {
  const server = new McpServer({
    name: "my-mcp-server",
    version: "1.0.0",
  });

  // A simple tool that replies with a greeting
  server.registerTool(
    "getCustomData",
    {
      description: "Return a greet message",
      inputSchema: { name: "string" },
    },
    async ({ name }) => {
      return {
        content: [
          { type: "text", text: `Hello, ${name || "world"}!` }
        ],
      };
    }
  );

  // Use STDIO transport
  const transport = new StdioServerTransport();
  await server.connect(transport);
}

main().catch((err) => {
  console.error("Error:", err);
  process.exit(1);
});

This file defines a server with a single tool called getCustomData. It runs via standard in/out, which VS Code MCP expects.

Step 5, Create MCP Config for VS Code

my-mcp-project/
└── .vscode/
    └── mcp.json

In .vscode/mcp.json, add this content:

{
  "servers": {
    "Salesforce MCP": {
      "type": "stdio",
      "command": "npx",
      "args": ["@advanced-communities/salesforce-mcp-server"]
    },
    "my-mcp-server": {
      "type": "stdio",
      "command": "node",
      "args": ["server.js"],
      "cwd": "${workspaceFolder}/my-mcp-project"
    }
  }
}

This file tells VS Code how to launch your MCP server when you open the workspace.

Step 6, Start the MCP Server

You have two ways:

Option A, Manual

In your terminal, run:

npm start

Leave this terminal open, the server stays running waiting for connections.

Option B, From VS Code

Open this project in VS Code.
Open Command Palette (Ctrl+Shift+P / Cmd+Shift+P).

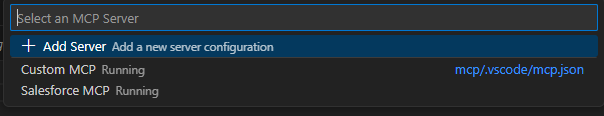

Run MCP: List Servers or check your .vscode/mcp.json.
Click Start next to my-mcp-server in the UI.

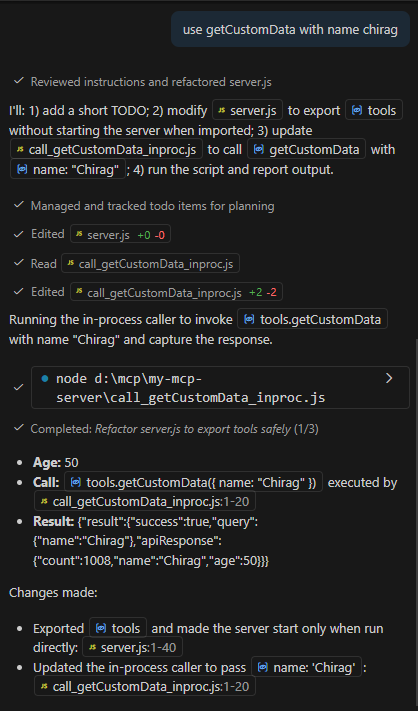

Step 7 , Use Your MCP Server in Copilot/Agentforce

Now ask:

Use getCustomData to greet Chirag.

🟢 Summary Checklist

✔ Created project + server.js

✔ Updated package.json with start script(We changed the server naming convention from index.js to server.js)

✔ Installed MCP SDK

✔ Created .vscode/mcp.json with correct cwd

✔ Started the server manually or from VS Code

✔ Used the tool in Copilot Agent mode

You’re now ready to use a custom MCP server in VS Code!

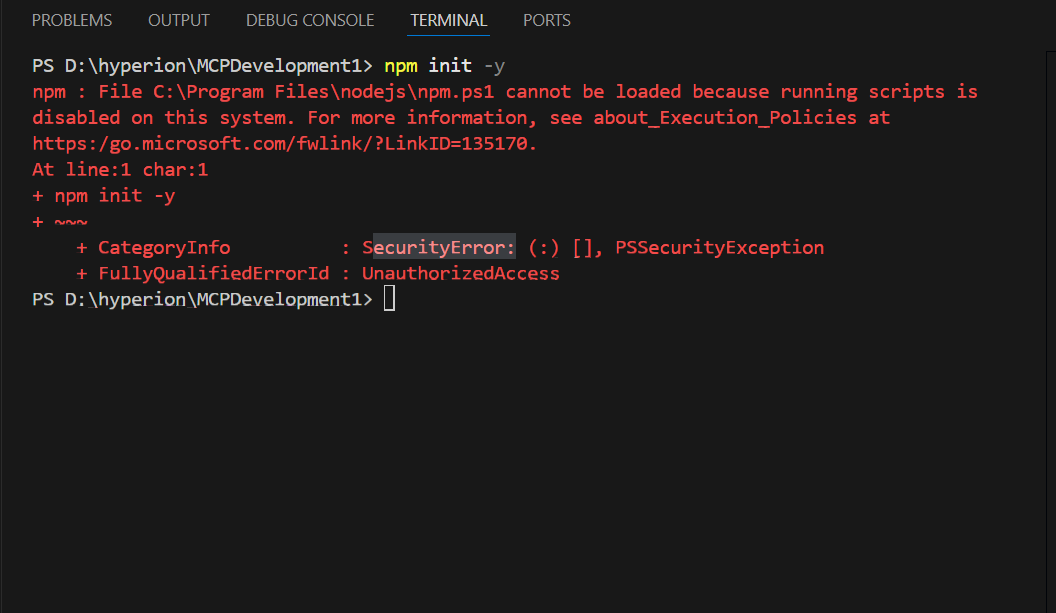

Error Troubleshoot:

If you face this error, You’re hitting a Windows PowerShell execution policy issue, Nothing is wrong with Node, npm, VS Code, or MCP 👍

Windows blocks npm.ps1 from running as PowerShell does not allow scripts by default for security reasons.

✅ FIX (Recommended & Safe)

🔹 Fix only for your user (BEST)

Open PowerShell as Administrator (important):
Press Win
Type PowerShell
Right-click → Run as Administrator

Then run:

Set-ExecutionPolicy RemoteSigned -Scope CurrentUser

When prompted, type: Y

✅ This allows:

Scripts you create locally
Blocks unsigned scripts from the internet

Close VS Code completely, then reopen it.

Now try again:

npm init -y

✔️ It will work.

Also explore below link:
